VGA Cat5e/6 Extender with Audio – 300m
Original price was: $185.90.$92.95Current price is: $92.95.
AC1671
Able to transmit VGA and audio signals across a standard UTP or STP Cat6/Cat5e cable for distances up to 300 metres. Adjust the brightness and skew of the image with the peak and gain options. Use for home or commercial applications, for example, classrooms, lecture halls, auditoriums, retail kiosks, video information displays, tradeshows, etc. Ideal for VGA monitors or LCD projection screens. Supports up to 1920 x 1200 pixels. Includes two mains power adaptors.
Features:
LPCM 2.0 Audio
1920 x 1200 Maximum Video Resolution
Specifications
| Dimension details : Transmitter |
| Length : 100.0mm |
| Width : 65.0mm |
| Height : 26.0mm |
| DC Plugpack Voltage : 5.0V, 5.0V |
| DC Current Draw : 2.0A, 2.0A |
| Item Connection : Barrel Plug |
| Suitable PSU Included : true |
| Supported Display Resolution : 480p (640 x 480), 800 x 600, 1024 x 768, 720p (1280 x 720), 1280 x 768, 1280 x 1024, 1920 x 1080 @ 60fps |
| Resolution Frequency : 60.0Hz, 85.0Hz |
| Maximum Horizontal Resolution : 1920.0Pixel |
| Maximum Vertical Resolution : 1200.0Pixel |
| Switcher/Converter Type : Balun Extender |
| Input type : VGA |
| Dimension details : Receiver |
| Length : 82.0mm |
| Width : 43.0mm |
| Height : 23.0mm |
| Signal Type : VGA |
| Input Connection : D15 HD (VGA) |
| Connecting Cable : Cat5 UTP |
| Maximum Distance Between Baluns (cat5e) : 210.0m, 210.0m |
| Maximum Distance Between Baluns (cat6) : 300.0m, 300.0m |
| Number of Cables : 1.0pc |
| Output Connection : D15 HD (VGA) |
| Number of Outputs : 1.0pc |
Related Products
-

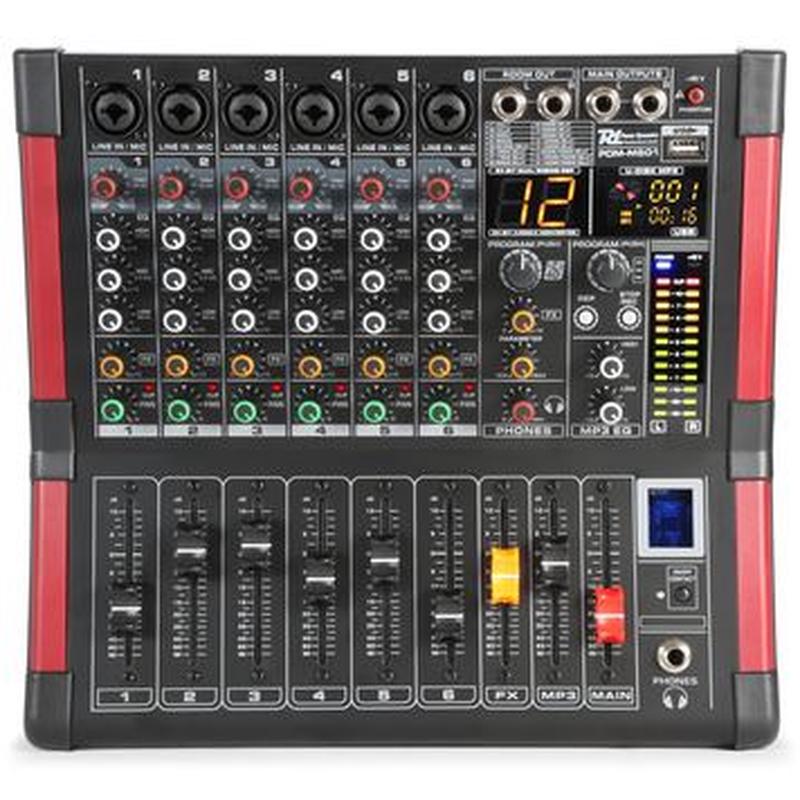

Power Dynamics 6 Channel Music Mixer – USB/Bluetooth
Original price was: $599.00.$148.00Current price is: $148.00.PDM-M604 6-Channel Music Mixer A full size music mixer with 6 channels. Comes standard with built-in BT receiver and 24-bit Multi-FX processor with 16 presets. Ideal for usage in small to medium sized studio’s and recording set-ups. 6 Balanced mono microphone-/line input (Combi XLR/Jack) +48V phantom power Multi-FX processor with 16 presets Hi, Mid and Low control for each channel…
-
6-Way Speaker Selector with Internal Protection
Original price was: $202.00.$101.00Current price is: $101.00.AC1683 This speaker selector box is perfect for anyone with a multi-room speaker system that they want to run from a master source. This selector box allows you to connect up to 6 pairs of speakers to your amplifier, and select any number of those pairs to play your music simultaneously. Features: Solid metal construction Compatible with amplifiers up to…
-

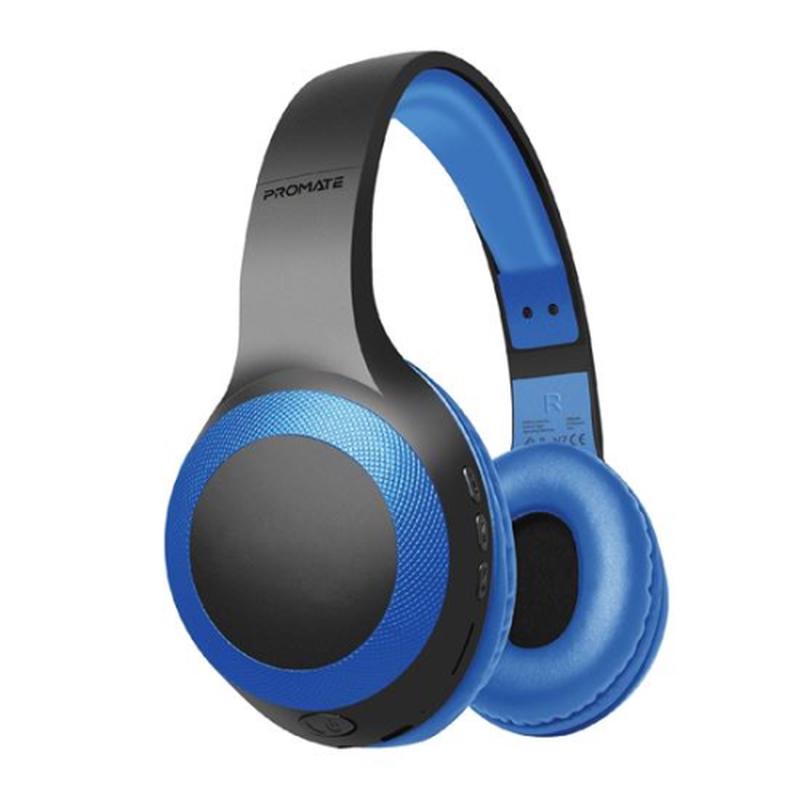

PROMATE Deep Base Bluetooth Headphones – Blue
