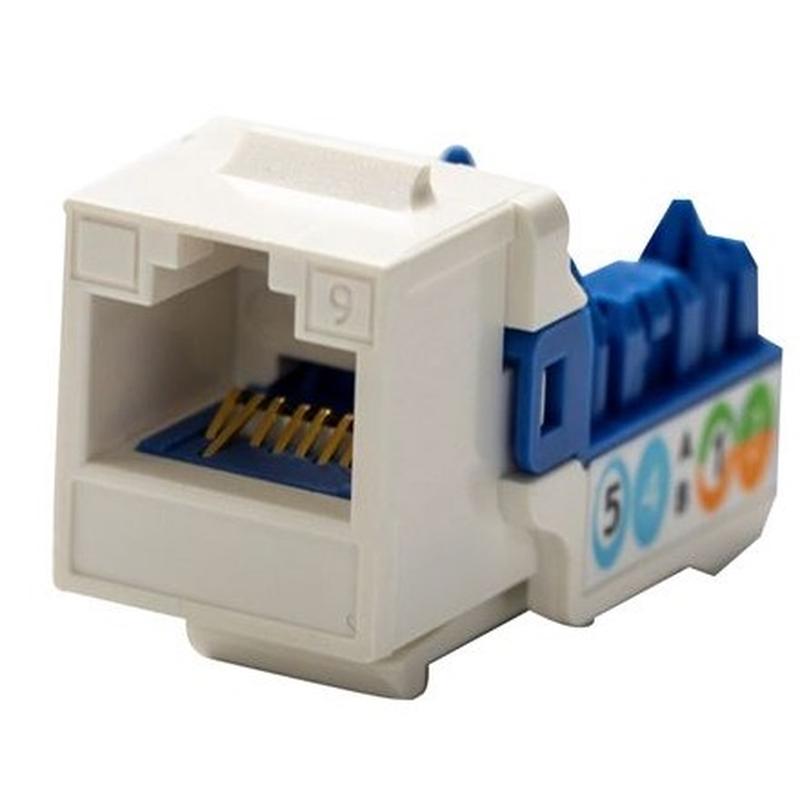

DYNAMIX Cat6 UTP 90 Degree Keystone Jack, 110 IDC.
Original price was: $8.00.$6.40Current price is: $6.40.
HousingABS UL94V-0 flame retardancySpring WirePhosphor bronze 0.35t, plated with 50u gold at
contact area over 60u nickel undercoatPCBFR4IDC TerminalsPhosphor bronze 0.5t, plated with 100u nickelIDC BlockHigh-impact Polycarbonate UL94V-2 flame
retardancySolid Wire RangeConductor Diameter24AWG – 22AWGInsulation Diameter0.8mm – 1.1mmCable Diameter5mm – 9mmPlug Insertion Life (Mating)750 cycles withFCC compliantplugPlug and Jack Contact Forcemin. 100g using FCC approved plugPlug Retention Forcemin. 30lbsStorage Temperature-40 ~ 68Operating Temperature-10 ~ 60Operating Humidity10% ~ -90%RHCurrent Rating1.5AInsulation Resistancemin. 500mContact Resistancemax. 20mTransmission Performance10GBase-TFCCPart 68TIA/EIA568-C.2UL1863
ETL Certified
Supports POE+
Related Products
-
DYNAMIX Cat6A 10G Shielded Joiner
Original price was: $13.90.$11.12Current price is: $11.12.DYNAMIX Cat6A 10G Shielded joiner, RJ45 8C, 2-Way (2x RJ45 Sockets) Features: Fully shielded housing options reduce EMI/RFI interference Cat6 shielded
-

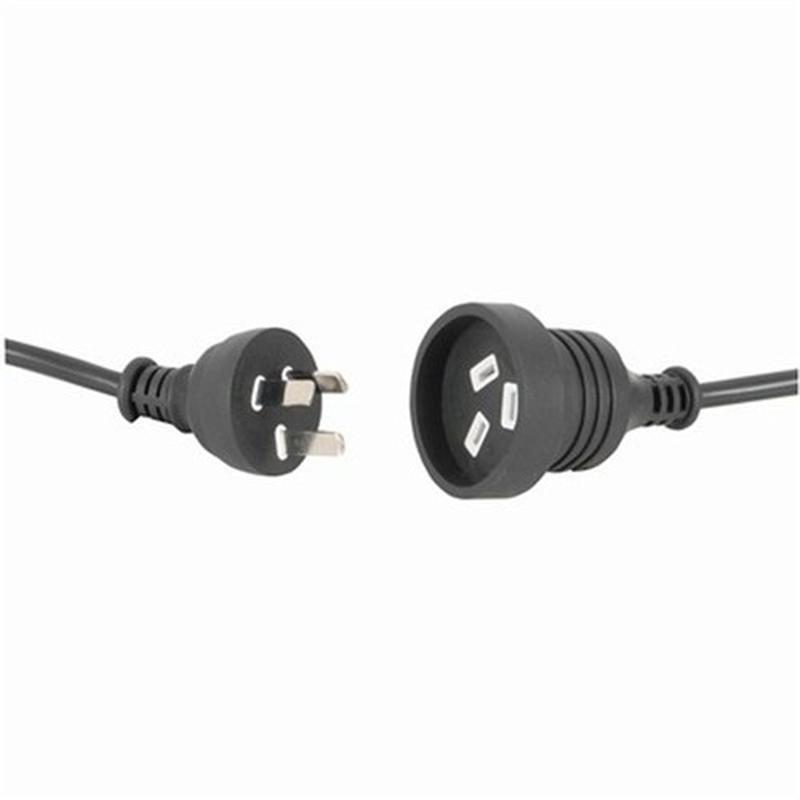

Mains Lead Extension Cable Black – 10m
Original price was: $22.50.$18.00Current price is: $18.00.PS4157 240V Mains PowerPerfect for stage, lighting, DJ or other applications where the inconspicuousness of a black extension lead is required. Specifications AC current rating : 10.0A Mains Voltage Range : 240.0V Frequency : 50.0Hz Rated for AU Mains : true Mains Max Current : 10.0A Max Input Power : 2400.0W Mains Item connection : Mains AU/NZ 3 Pin Mains…
-

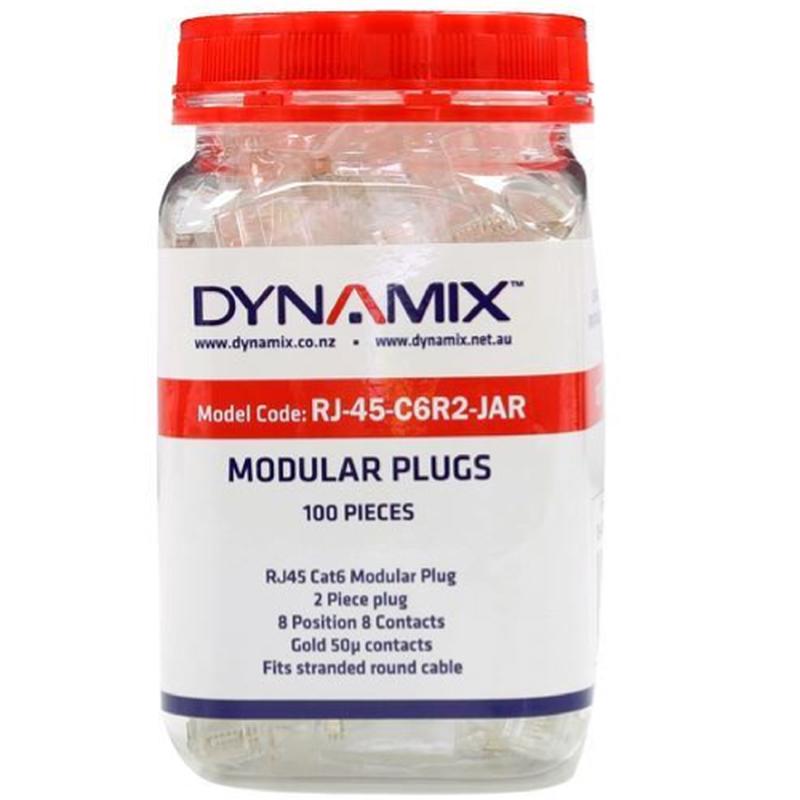

DYNAMIX Cat6 RJ45 Plug Jar – Rounded Stranded
