Cat III Insulation Tester/Multimeter
Original price was: $459.90.$137.97Current price is: $137.97.
QM1493
Batteries Included
Specifications
Category: Cat IV 600V / Cat III 1000V
Display: 4000 count
Basic accuracy: 1%
Insulation test: 4Gohms @ 125 – 1000V
Ave/RMS: Ave
Analogue/digital display
Data hold
Max/min
Moulded case
Backlit LCD
Auto power-off
Commonly known as a megger and suitable for high voltage insulation testing up to 4 gigaohms at up to 1000V. It also has AC/DC voltage and low resistance multimeter functions. Moulded storage case and holster included.
Specifications
| Insulation Resistance Ranges : 4.0M, 40.0M, 400.0M |
| Accuracy : (2%+10) to (5%+5) depending on scale. Refer to manual for full details.% |
| Test Voltage : 125.0V, 250.0V, 500.0V, 1000.0V |
| Test Current : 1.0mA |
| Resistance Ranges : 40.0, 400.0 |
| Resistance Accuracy : (1.2%+3) |
| AC Voltage Ranges : 750.0V |
| AC Voltage Accuracy : (1.2%+10) |
| DC Voltage Ranges : 1000.0V |
| DC Voltage Accuracy : (0.8%+3) |
| Records Minimum : true |
| Records Maximum : true |
| Data Hold : true |
| Digits Displayed : 4.0 digit |
| Display Type : LCD |
| Display Backlight : LED Backlit |
| Bargraph : true |
| Safety Rating Cat : Cat III |
| Safety Rating Max Volt : 1000.0V |
| Count / Maximum Reading : 4000.0 count |
| Autorange : true |
| Length : 200.0mm |
| Width : 92.0mm |
| Depth : 50.0mm |
| Size / Shape : AA |
| Battery quantity : 6.0pc |
| Batteries included : true |
| Batteries can be replaced by user : true |
| Compartment location : Back |
| Probe rating voltage : 1000.0V |
| Probe safety rating : Cat III |
| Meter Input Impedence : 0.0 |
| Input Protection Fuse : 15.0mA |
| Carry Case Included : true |
Related Products
-

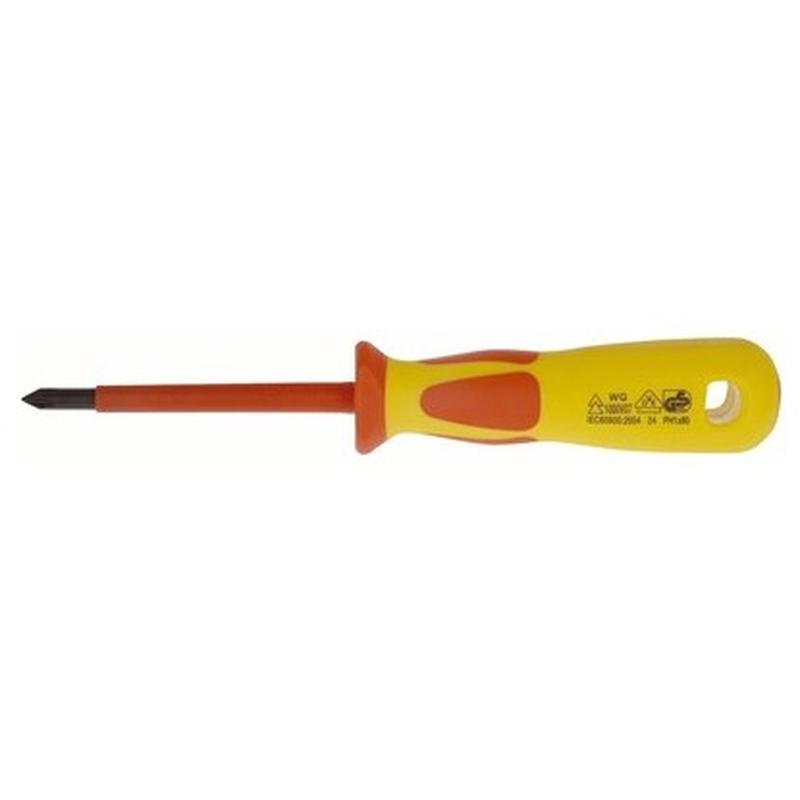

Screwdriver – Phillips #1 x 80mm
Original price was: $14.90.$11.92Current price is: $11.92.TD2236 This range of trade quality insulated screwdrivers are some of the most comfortable screwdrivers we have ever used. The ergonomic handles have a soft rubber coating for a secure, comfortable grip that you can use for hours on end.All are TUV and GS approved and rated up to 1kV. Specifications Pack type : Single driver Bit type : Phillips…
-

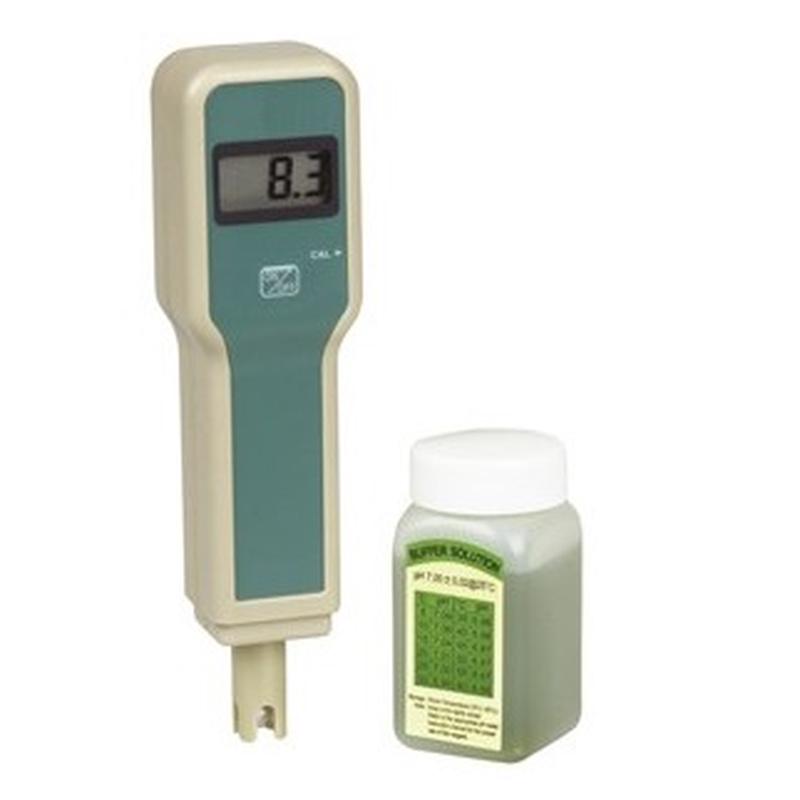

Hand Held pH Meter
